Wireless Smart Torque System
WiFi Smart Torque Wrench System
The range includes the WPE_B(SN) WiFi Mechatronic Preset Torque Wrench, WE_C WiFi Multifunctional Electronic Torque Wrench, WE_B(SN) WiFi Multifunctional Electronic Torque Wrench System (Large Color Screen & Scanner), WEG_H WiFi Battery Torque Wrench System (Large Color Screen & Scanner) and the WET WiFi Pre-tightening Electronic Torque Wrench System — offering solutions for preset, multifunctional, battery-powered and pre-tightening applications.
Complementing the system is the 1-To-1 Wireless Counting System, designed to ensure every bolt is tightened on the production line. When a “click” is detected, a wireless signal is instantly transmitted (up to 20m range, 2.4GHz) to the receiver for immediate confirmation.
WPE_B(SN) Series WiFi Mechatronic Preset Torque Wrench System (with Color Screen & Scanner)
The WPE_B(SN) system is a smart torque solution combining WiFi mechatronic preset torque wrench (with Scanner) and centralized management software for Industry applications.
The system integrates versatile functions including WiFi connectivity, code scanning, color screen display, mechanical “Click”, torque/angle measurement, force curve viewing and data storage.
– Under WiFi, the torque wrench and centralized control center can communicate in real-time, enabling control of 24 wrenches simultaneously.
– This system meets the bolt tightening quality control and torque data traceability needs of industries like automotive, high-speed rail,
aerospace, energy, and machinery. It’s an ideal choice for various manufacturing enterprises.
– For customers with development capabilities, the communication protocol can be opened. Users can make full use of the data collected by the tools to independently develop more management functions.
- Torque Accuracy: CW±4% from 20% to 100% of capacity
- Angle Accuracy: ( ±1% of reading) + ( ±1° @ angular speed of 10°/s~180°/s) +( ±1° of test fixture)
- Color screen display, clear view of parameters and tool information, facilitating the adjustment of the wrench’s preset torque value according to the displayed figures.
- It retains the mechanical audible “Click” feedback, preserving workers’ familiar operation habits.
- The torque is mechanically adjustable, and the angle range is system-configurable to prevent repeated tightening of the same screw.
- Code Scanning Function: The wrench is equipped with a built-in scanning module, enabling scanned data to be uploaded in real-time to the centralized control center along with the wrench operation data.
- Angle Function: Developed by a team of experts and professors, this function adopts a high-precision gyroscope chip, enabling sensitive angle recognition on any plane.
- 7 Torque units: Nm, cNm, Kgm, Kgcm, Lbft, Lbin, Ozin
- 2 Judge modes: Peak, First peak
- When the target torque value is reached, the wrench will make a “Click” sound, accompanied by LED light and buzzer alarms.
- Automatic zero reset during continuous use.
- After unloading, the peak value and judgment light status remain displayed, with the force application curve shown.
- Recent force application curves can be saved and viewed on the wrench.
- 2 Data upload (storage) methods: Sequential upload, qualified upload.
- The wrench is equipped with a built-in memory and can store 1000 sets of data.
- Automatically shuts down after standby time, and the standby time can be set.
- The menu language on the wrench screen is switchable: Simplified/Traditional Chinese or English.
- Battery level is displayed on the screen.
- Featuring an 18650 high-capacity rechargeable lithium battery, it enables convenient USB-C charging on the wrench or quick replacement by charging the battery externally with a dedicated charger, eliminating downtime.
Centralized Control Center
- The torque wrench comes with Centralized Control Center software, which can collect and record the real-time data from 24 simultaneously working wrenches.
- Two-way communication function: Users can set parameters either directly on the wrench or remotely through the Centralized Control Center software and then send them to the wrench, enabling flexible parameter management.
- Remote locking function: The wrench can be remotely locked via the control center, preventing parameter modification at the wrench end.
- When the communication between the wrench and the server is interrupted, data will be automatically stored in the wrench memory. Once communication is restored, data will be automatically uploaded. Data can also be manually uploaded via the USB Update Software.
- There are two software programs for the centralized control center computer:
USB Update Software
– WiFi configuration
– Data upload upon communication interruption
– Settings for 20 parameter groups
– Other function settings
– Wrench software upgrade
WiFi Server Software
– Real-time dashboards for 24 wrenches
– Automatic data collection and storage
– Settings for 20 parameter groups
– Live torque application curve viewing
– Other function settings

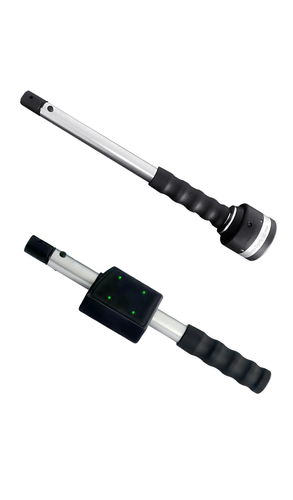

WPEMH_B（SN）Model
Rectangular Shank Head Holder Torque Wrench
For rectangular shank head inserts
WE_C Series WiFi Multifunctional Electronic Torque Wrench System
The WE_C system is a smart torque solution combining WiFi multifunctional electronic torque wrench and centralized management software for Industry applications.
The system integrates versatile functions including WiFi connectivity, color screen display, torque/angle measurement, preset group settings, force curve viewing, Ratio function (for non-standardheads), and data storage.
– Under WiFi, the torque wrench and centralized control center can communicate in real-time, enabling control of 24 wrenches simultaneously.
– This system meets the bolt tightening quality control and torque data traceability needs of industries like automotive, high-speed rail,
aerospace, energy, and machinery. It’s an ideal choice for various manufacturing enterprises.
– For customers with development capabilities, the communication protocol can be opened. Users can make full use of the data collected by the tools to independently develop more management functions.
Main Features and Functions
- Torque Accuracy: CW±2%, CCW±3% from 10% to 100% of capacity
- Angle Accuracy: ( ±1% of reading) + ( ±1° @ angular speed of 10°/s~180°/s) +( ±1° of test fixture)
- Color-screen display with menu-based operation, which is easy to set up and use.
- Aluminum tube, lightweight and portable
- Angle Function: Developed by a team of experts and professors, this function adopts a high-precision gyroscope chip, enabling sensitive angle recognition on any plane.
- 7 Torque units: Nm, cNm, Kgm, Kgcm, Lbft, Lbin, Ozin.
- 2 Test modes: Peak, Track.
- Target values can be set, with 3 Test Types available:
- Peak Torque test, the target torque value can be set
- Peak Angle test, the target angle value can be set
- Peak Torque+Angle test, the target torque and angle values can be set
- Preset group function: 20 sets of parameters can be preset.
- MinAngle function: The minimum angle can be set to prevent repeated operations on the same bolt.
- When the target value is reached, there will be audible, visual and handle vibration alarms.
- Automatic zero reset during continuous use.
- After unloading, the peak value and judgment light status remain displayed, with the force application curve shown
- Recent force application curves can be saved and viewed on the wrench.
- 3 Storage methods: Automatic, Manual and Qualified Storage.
- The wrench is equipped with a built-in memory and can store 1000 sets of data.
- Ratio function: For the non-standard calculation of head extension, input the coefficient once, and the system will automatically convert and display the actual torque value on the screen.
- The screen brightness can be adjusted.
- Automatically shuts down after standby time, and the standby time can be set.
- The menu language on the wrench screen is switchable: Simplified/Traditional Chinese or English.
- Battery level is displayed on the screen.
- Featuring an 18650 high-capacity rechargeable lithium battery, it enables convenient USB-C charging on the wrench or quick replacement by charging the battery externally with a dedicated charger, eliminating downtime.
Centralized Control Center
- The torque wrench comes with Centralized Control Center software, which can collect and record the real-time data from 24 simultaneously working wrenches.
- Two-way communication function: Users can set parameters either directly on the wrench or remotely through the Centralized Control Center software and then send them to the wrench, enabling flexible parameter management.
- Remote locking function: The wrench can be remotely locked via the control center, preventing parameter modification at the wrench end.
- When the communication between the wrench and the server is interrupted, data will be automatically stored in the wrench memory. Once communication is restored, data will be automatically uploaded. Data can also be manually uploaded via the USB Update Software.
- There are two software programs for the centralized control center computer:
USB Update Software
– WiFi configuration
– Data upload upon communication interruption
– Settings for 20 parameter groups
– Other function settings
– Wrench software upgrade
WiFi Server Software
– Real-time dashboards for 24 wrenches
– Automatic data collection and storage
– Settings for 20 parameter groups
– Live torque application curve viewing
– Other function settings
WEMH_C Model
Rectangular Shank Head Holder Torque Wrench
For rectangular shank head inserts
WE_B(SN) Series WiFi Multifunctional Electronic Torque Wrench System (with Large Screen & Scanner)
The WE_B(SN) system is a smart torque solution combining WiFi multifunctional electronic torque wrench (with large screen and scanner) and centralized management software for Industry applications.
The system integrates versatile functions including WiFi connectivity, code scanning, large-colorscreen display, torque/angle measurement, residual torque testing, preset group settings, force curve viewing, Ratio function (for non-standard heads), and data storage.
– Under WiFi, the torque wrench and centralized control center can communicate in real-time, enabling control of 24 wrenches simultaneously.
– This system meets the bolt tightening quality control and torque data traceability needs of industries like automotive, high-speed rail,
aerospace, energy, and machinery. It’s an ideal choice for various manufacturing enterprises.
– For customers with development capabilities, the communication protocol can be opened. Users can make full use of the data collected by the tools to independently develop more management functions.
Main Features and Functions
- Torque Accuracy: CW±1%, CCW±2% +1dight from 10% to 100% of capacity;
- Angle Accuracy: ( ±1% of reading) + ( ±1° @ angular speed of 10°/s~180°/s) +( ±1° of test fixture)
- Large color-screen display with menu-based operation, which is easy to set up and use.
- Carbon fifiber tube, high strength and light weight.
- Code Scanning Function: The wrench is equipped with a built-in scanning module, enabling scanned data to be uploaded in real-time to the centralized control center along with the wrench operation data.
- Angle Function: Developed by a team of experts and professors, this function adopts a high-precision gyroscope chip, enabling sensitive angle recognition on any plane.
- 7 Torque units: Nm, cNm, Kgm, Kgcm, Lbft, Lbin, Ozin.
- 2 Test modes: Peak, Track.
- Target values can be set, with 5 Test Types available:
- Peak Torque test, the target torque value can be set
- Peak Angle test, the target angle value can be set
- Peak Torque+Angle test, the target torque and angle values can be set
- Beta test function, which can measure the torque and angle of tightening a bolt
- Residual torque function, which can test residual torque
- Preset group function: 50 sets of parameters can be preset.
- Mini-angle function: The minimum angle can be set to prevent repeated operations on the same bolt.
- When the target value is reached, there will be audible, visual and handle vibration alarms.
- Automatic zero reset during continuous use.
- After unloading, the peak value and judgment light status remain displayed, with the force application curve shown.
- Recent force application curves can be saved and viewed on the wrench.
- 3 Storage methods: Automatic, Manual and Qualified Storage.
- The wrench is equipped with a built-in memory and can store 2000 sets of data.
- Ratio function: For the non-standard calculation of head extension, input the coefficient once, and the system will automatically convert and display the actual torque value on the screen.
- The screen brightness can be adjusted.
- Automatically shuts down after standby time, and the standby time can be set.
- The menu language on the wrench screen is switchable: Simplified/Traditional Chinese or English.
- Battery level is displayed on the screen.
- Featuring an 18650 high-capacity rechargeable lithium battery, it enables convenient USB-C charging on the wrench or quick replacement by charging the battery externally with a dedicated charger, eliminating downtime.
Centralized Control Center
- The torque wrench comes with Centralized Control Center software, which can collect and record the real-time data from 24 simultaneously working wrenches.
- Two-way communication function: Users can set parameters either directly on the wrench or remotely through the Centralized Control Center software and then send them to the wrench, enabling flexible parameter management.
- Remote locking function: The wrench can be remotely locked via the control center, preventing parameter modification at the wrench end.
- When the communication between the wrench and the server is interrupted, data will be automatically stored in the wrench memory. Once communication is restored, data will be automatically uploaded. Data can also be manually uploaded via the USB Update Software.
- There are two software programs for the centralized control center computer:
USB Update Software
– WiFi configuration
– Data upload upon communication interruption
– Settings for 20 parameter groups
– Other function settings
– Wrench software upgrade
WiFi Server Software
– Real-time dashboards for 24 wrenches
– Automatic data collection and storage
– Settings for 20 parameter groups
– Live torque application curve viewing
– Other function settings
WEM_B(SN) Model
Reversible Ratchet Head Torque Wrench
Bidirectional operation
WEMH_B(SN) Model
Rectangular Shank Head Holder Torque Wrench
For rectangular shank head inserts
WEG_H Series WiFi Battery Torque Wrench System (with Large Screen & Scanner)
The WEG_H system is a smart torque solution combining WiFi Battery Torque Wrench (with Large Screen & Scanner) and centralized management software for Industry applications.
The system integrates versatile functions including WiFi connectivity, code scanning, large-colorscreen display, precise torque control, preset parameter/batch group settings, force curve viewing, remote locking and automatic data acquisition with multiple storage methods.
– Under WiFi, the torque wrench and centralized control center can communicate in real-time, enabling control of 24 wrenches simultaneously.
– This system meets the bolt tightening quality control and torque data traceability needs of industries like automotive, high-speed rail,
aerospace, energy, and machinery. It’s an ideal choice for various manufacturing enterprises.
– For customers with development capabilities, the communication protocol can be opened. Users can make full use of the data collected by the tools to independently develop more management functions.
Main Features and Functions
- Accuracy: CW±5% from 20% to 100% of capacity.
- Large color-screen display with menu-based operation, which is easy to set up and use.
- Code Scanning Function: The wrench is equipped with a built-in scanning module, enabling scanned data to be uploaded in real-time to the centralized control center along with the wrench operation data.
- 7 Torque units: Nm, cNm, Kgm, Kgcm, Lbft, Lbin, Ozin.
- The target torque value for bolt tightening can be set. When the set value is reached, the wrench will stop automatically.
- 2 Work modes are switchable: Parameter Mode (executing a single parameter group), Batch Mode (executing a combination of multiple parameter groups).
- 50 parameter groups can be preset.
- 20 Batch groups can be preset. Each batch group allows for the configuration of multiple parameter groups and their execution times, meeting the requirements of the complex assembly process flow.
- Automatic zero reset during continuous use.
- After unloading, the peak torque and angle remain displayed, with the force application curve shown.
- Recent force application curves can be saved and viewed on the wrench.
- 3 Storage methods: Automatic, Manual and Qualified Storage.
- The wrench is equipped with a built-in memory and can store 5000 sets of data.
- The screen brightness can be adjusted.
- Automatically shuts down after standby time, and the standby time can be set.
- The menu language on the wrench screen is switchable: Simplified/Traditional Chinese or English.
- Battery level is displayed on the screen.
- Using an 18V high-capacity lithium battery that can be charged by a dedicated charger for replacement.
- When the number of tests reaches 5,000, a calibration reminder will appear on the wrench screen when it is powered on.
Centralized Control Center
- The torque wrench comes with Centralized Control Center software, which can collect and record the real-time data from 24 simultaneously working wrenches.
- Two-way communication function: Users can set parameters either directly on the wrench or remotely through the Centralized Control Center software and then send them to the wrench, enabling flexible parameter management.
- Remote locking function: The wrench can be remotely locked via the control center, preventing parameter modification at the wrench end.
- When the communication between the wrench and the server is interrupted, data will be automatically stored in the wrench memory. Once communication is restored, data will be automatically uploaded. Data can also be manually uploaded via the USB Update Software.
- There are two software programs for the centralized control center computer:
USB Update Software
– WiFi configuration
– Data upload upon communication interruption
– Settings for 20 parameter groups
– Other function settings
– Wrench software upgrade
WiFi Server Software
– Real-time dashboards for 24 wrenches
– Automatic data collection and storage
– Settings for 20 parameter groups
– Live torque application curve viewing
– Other function settings
WET Series WiFi Pre-tightening Electronic Torque Wrench System
The WET system is a smart torque solution combining WiFi pre-tightening electronic torque wrench and centralized management software for Industry applications.
The system integrates versatile functions including WiFi connectivity, auto pre-tightening, color screen display, torque/angle measurement, preset group settings, force curve viewing, Ratio function (for non-standard heads), and data storage.
– Under WiFi, the torque wrench and centralized control center can communicate in real-time, enabling control of 24 wrenches simultaneously.
– This system meets the bolt tightening quality control and torque data traceability needs of industries like automotive, high-speed rail,
aerospace, energy, and machinery. It’s an ideal choice for various manufacturing enterprises.
– For customers with development capabilities, the communication protocol can be opened. Users can make full use of the data collected by the tools to independently develop more management functions.
Main Features and Functions
- Torque Accuracy: CW±2%, CCW±3% from 10% to 100% of capacity
- Angle Accuracy: ( ±1% of reading) + ( ±1° @ angular speed of 10°/s~180°/s) +( ±1° of test fixture)
- Color-screen display with menu-based operation, which is easy to set up and use.
- Pre-tightening function: Before applying force, it can automatically pre-tighten to quickly eliminate the clearance, making your work easier and more efficient.
- Angle Function: Developed by a team of experts and professors, this function adopts a high-precision gyroscope chip, enabling sensitive angle recognition on any plane.
- 7 Torque units: Nm, cNm, Kgm, Kgcm, Lbft, Lbin, Ozin.
- 2 Test modes: Peak, Track.
- Target values can be set, with 3 Test Types available:
- Peak Torque test, the target torque value can be set
- Peak Angle test, the target angle value can be set
- Peak Torque+Angle test, the target torque and angle values can be set
- Preset group function: 20 sets of parameters can be preset.
- MinAngle function: The minimum angle can be set to prevent repeated operations on the same bolt.
- When the target value is reached, there will be audible, visual and handle vibration alarms.
- Automatic zero reset during continuous use.
- After unloading, the peak value and judgment light status remain displayed, with the force application curve shown.
- Recent force application curves can be saved and viewed on the wrench.
- 3 Storage methods: Automatic, Manual and Qualified Storage.
- The wrench is equipped with a built-in memory and can store 1000 sets of data.
- Ratio function: For the non-standard calculation of head extension, input the coefficient once, and the system will automatically convert and display the actual torque value on the screen.
- The screen brightness can be adjusted.
- Automatically shuts down after standby time, and the standby time can be set.
- The menu language on the wrench screen is switchable: Simplified/Traditional Chinese or English.
- Battery level is displayed on the screen.
- Featuring an 18650 high-capacity rechargeable lithium battery, it enables convenient USB-C charging on the wrench or quick replacement by charging the battery externally with a dedicated charger, eliminating downtime.
Centralized Control Center
- The torque wrench comes with Centralized Control Center software, which can collect and record the real-time data from 24 simultaneously working wrenches.
- Two-way communication function: Users can set parameters either directly on the wrench or remotely through the Centralized Control Center software and then send them to the wrench, enabling flexible parameter management.
- Remote locking function: The wrench can be remotely locked via the control center, preventing parameter modification at the wrench end.
- When the communication between the wrench and the server is interrupted, data will be automatically stored in the wrench memory. Once communication is restored, data will be automatically uploaded. Data can also be manually uploaded via the USB Update Software.
- There are two software programs for the centralized control center computer:
USB Update Software
– WiFi configuration
– Data upload upon communication interruption
– Settings for 20 parameter groups
– Other function settings
– Wrench software upgrade
WiFi Server Software
– Real-time dashboards for 24 wrenches
– Automatic data collection and storage
– Settings for 20 parameter groups
– Live torque application curve viewing
– Other function settings
DC-04WX Series 1-To-1 Wireless Transmitter System (Counting Type) for Preset Torque Wrench
Note: The DC-04WX model includes wireless transmitter and receiver (preset torque wrench not included). This system needs to be used with NovaTork PC series preset torque wrench.
- This One-to-One wireless transmission system is specially designed for the production line to ensure all the bolts are tightened.
- On detecting the wrench’s “Click”, the receiver will capture the wireless signal and output a switch signal for immediate user application.
- Wireless transmission distance: Within a 20-meter circular range.
- Wireless transmission frequency: 2.4GHz.
- The receiver is powered by a dedicated 12V DC power adapter (included).
- When “Click” occurs, the four green LEDs around the transmitter will turn on, as well as the green LED on the receiver.
- The transmitter is powered by a 3.7V 14500 (≥850mAh) lithium battery, which can be replaced without delaying work.
- The antenna of the transmitter is built-in, good looking and safe.
Matching NovaTork PC series preset torque wrench as follows:
For more information, please check PC series for details.
DC-05WX Series 1-To-1 Wireless Preset Torque Wrench System (Counting Type)
- This One-to-One wireless transmission system is specially designed for the production line to ensure all the bolts are tightened.
- On detecting the wrench’s “Click”, the receiver will capture the wireless signal and output a switch signal for immediate user application.
- Wireless transmission distance: Within a 20-meter circular range.
- Wireless transmission frequency: 2.4GHz.
- The receiver is powered by a dedicated 12V DC power adapter (included).
- When “Click” occurs, the four green LEDs around the transmitter will turn on, as well as the green LED on the receiver.
- The transmitter is powered by a 3.7V 14500 lithium battery, which can be replaced without delaying work.
DC-00TX(QC) Series Wired Transmitter for Preset Torque Wrench
Special
- This wired transmitter unit may be preferred where interference may interfere with the wireless signal transmission.
- The transmitter is mounted at the end of the torque wrench. Each time the wrench “Clicks”, it sends an OK signal to an external receiver for further processing of the signal information.
- Requires DC24V/2A power supply. Ensure the torque wrench is in proper working condition, then connect the aviation plug to begin operation.
Note: DC-00TX(QC) transmitter is compatible with most NovaTork PC/PCH series preset torque wrenches.
For more information, please consult the supplier.
Contact us Today
Have questions about our products, need technical guidance, or ready to place an order? Our team is here to help. Whether you’re looking for product information, a quotation, application support or purchasing assistance, we’re ready to support your requirements.
Get in touch with us through our contact form, send us an email, or give us a call — and we’ll make sure you receive the right solution quickly and efficiently.
- Kristineholmsvägen 10N, 441 39 Alingsås, Sweden
- info@novatork.eu
- +46 (0) 322 61 14 66
