Torque Testing

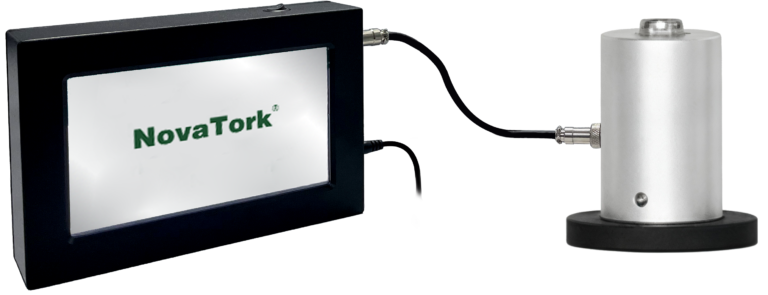

TEQ-B Series Torque Tester

Accuracy: ±0.5% from 10% to 100% of capacity
Color touch screen with intuitive menu, easy operation
The meter can automatically identify BZ transducers of different specifications
Languages available: Chinese or English
8 Torque units: N.m, cN.m, kgm, ckgm, gm, Lb.ft, Lb.in, Oz.in
3 Test modes: First Peak, Peak, Track
3 Types of testing interfaces: Regular, Preset, Waveform
100 sets of parameters can be preset
Automatic zero reset during continuous use.
Overload warning signal
During the wrench test, 15 test data will be automatically stored
Stores up to 8000 test data
It supports direct USB flash drive insertion for exporting the data file in Excel format.
The built-in stand can be extended for a better viewing angle.

Built-in stand on the back

Metric

The tester can be compatible with NovaTork torque testing loader and trolley.

TES Series Torque Tester

Designed for calibration or inspection of torque wrenches at the production site.

Accuracy: ±1% from 10% to 100% of capacity.
4 Torque units: Lbft, Lbin, Nm and Kgcm.
3 Test modes: First Peak, Peak and Track.
When the set torque is reached, there will be an audible and visual alarm.
Peak value hold function for First Peak and Peak mode.
Torque error% display function.
Memory function: Store 1500 sets of data as required, each set include time, unit, and value.
Switchable backlight for dark conditions.
Battery level display.
Micro-USB port for charging and uploading data to computer.
The built-in lithium battery can be charged by the dedicated the charging adapter.
Four bolts are designed at the bottom for fixing the tester on a workbench or other floor.
Automatically shut off after 10 minutes of non use.

TEV Series Vertical Small Torque Tester

Designed for calibration or inspection of small torque screwdrivers at the production site.

Accuracy: ±1% from 10% to 100% of capacity.
4 Torque units: Lbft, Lbin, Nm and Kgcm.
3 Test modes: First Peak, Peak and Track.
When the set torque is reached, there will be an audible and visual alarm.
Peak value hold function in First Peak and Peak mode.
Torque error% display function.
Memory function: 1500 sets of data can be stored.
There is a small tipping bucket at the front end for storing common sockets.
Equipped with a USB port for both charging and data uploading.
Switchable backlight for dark conditions.
Battery level display.
It uses an 18650 lithium battery that can be easily replaced from the back side.
Two bolt holes are designed for fixing the tester on a workbench or other base plates.
Automatically shut off after 10 minutes of non use.

TS Series Manual Loader for Torque Wrench Testing

Note: Torque tester and torque wrench are not included.

The large diameter hand wheel can be easily turned to test the torque wrench with controlled speed of force application.
Equipped with a reduction gearbox for more effortless testing operation.
Different transducers can be used by installing appropriate adapter plates on the transducer shaft.
The meter tray is height-adjustable for optimal viewing of readings.
The sliding block with support plate can be adjusted to accommodate torque wrenches of different lengths and keep them horizontal.
Sliding block with support plate for length adjustment and horizontal alignment.

Remarks: It can be customized for special requirements.

The testing loader can be used in combination
with NovaTork TEQ-B tester.

TSTEQBCH Series Torque Wrench Testing Trolley with Panel PC

This trolley is designed for on-site torque wrench testing and calibration on production lines.
It features an industrial all-in-one panel PC with a responsive touchscreen for intuitive menu operation and easy-to-read data, keeping the workspace clean and organized.
The worktop features organized slots for multiple BZ transducers, which can be automatically recognized by the system upon connection.
The reaction bar is adjustable to accommodate wrenches of various lengths.
A large handwheel on the front allows smooth and controlled force application for precise testing.
With four wheels, including dual swivel casters, the trolley can be easily moved by the side handle and secured with wheel brakes.
Built-in storage drawers keep transducers, USB cables, and tools neatly organized.
The L model features an automatically deployable extension bar (electrically operated), enabling efficient testing of large torque wrenches.

TSTEQBCH Model

Torque Test Trolley

TSTEQBCHL Model

Torque Test Trolley with Extension Bar

Max. measurable torque:
1250 N.m (Model TSTEQBCHL1250)
1500 N.m (Model TSTEQBCHL1500)
Adjustable reaction bar for torque wrench: 130-1450 mm
Extension bar extended (LxWxH): 2045x730x1355mm
Extension bar retracted (LxWxH): 1495x730x1355mm
Net weight: 185 kg
